Maytag Front Load Washer

Reference Model: MHW5500FW1

Problem: Machine doesn't add enough water in any wash cycle, but does in rinse and diagnostic cycles. The control board and water level switch have been replaced and the problem persists.

Diagnosis:

As per the tech sheet, run the quick diagnostic tests 6 & 7 listed on the sheet to check the water valves and the pressure sensor. This unit fills by load sensing, which normally produces 2.5" to 5" of water in the tub.

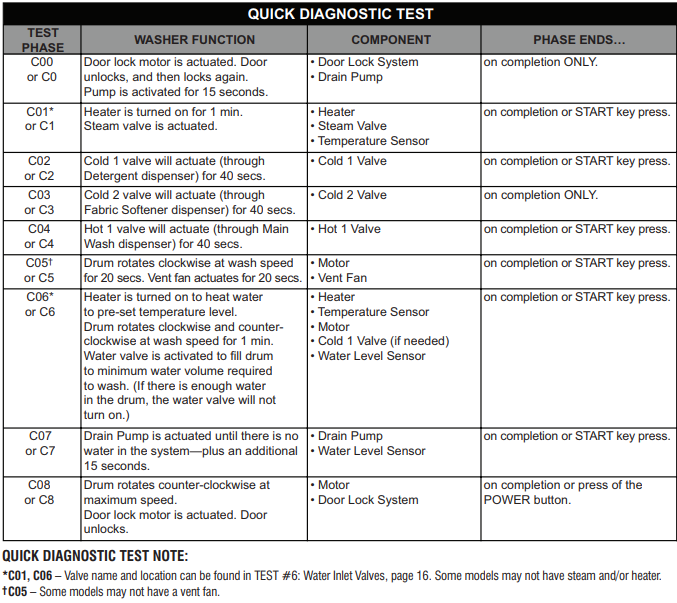

Quick Diagnostic Test Sheet is Linked Here

Some Maytag Washer parts for our reference model#

Drain Pump

Drain Pump

Item Number WPW10605427

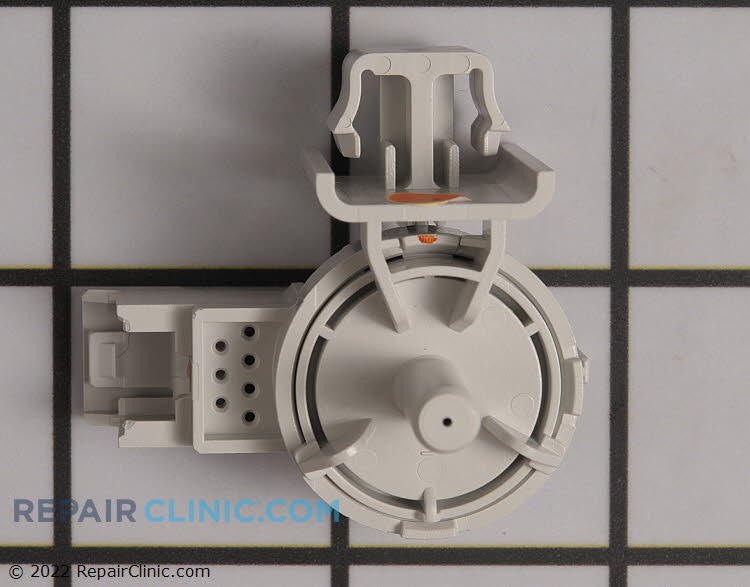

Water level pressure switch

Water level pressure switch

Item Number WPW10448876

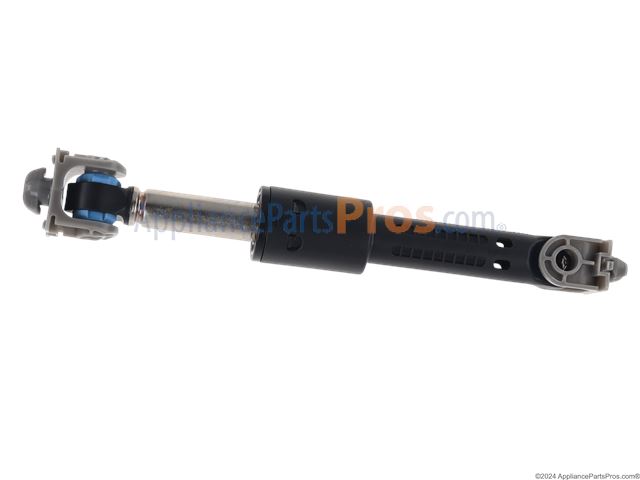

Shock absorber

Shock absorber

Item Number W11415987

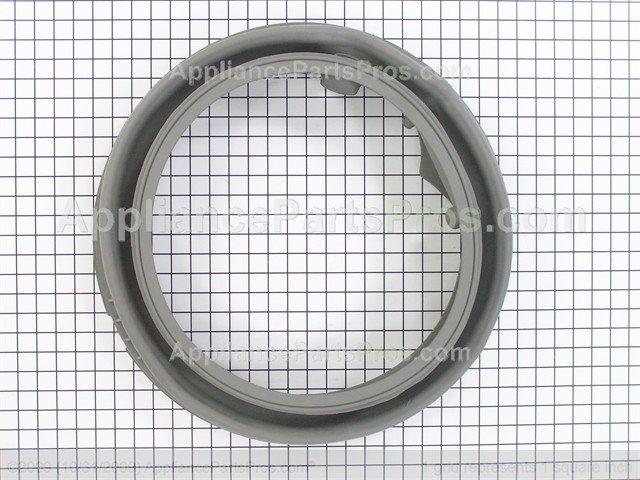

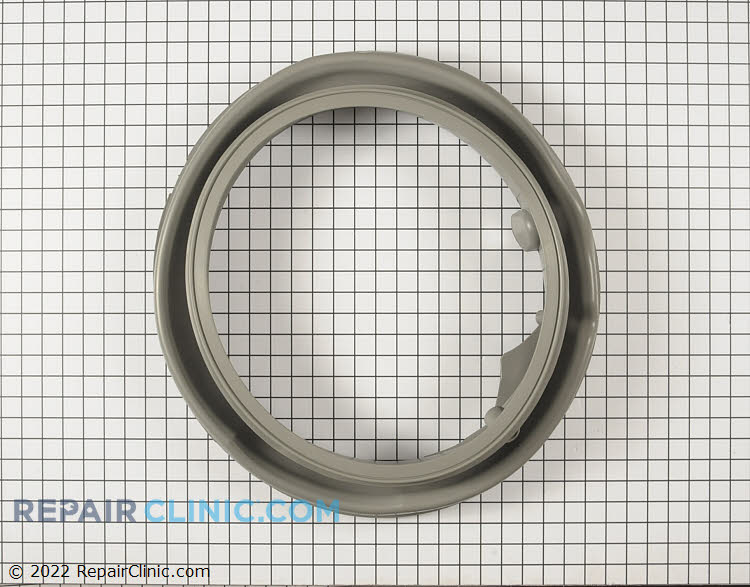

Door boot seal

Door boot seal

Item Number WPW10237499

Maytag Washer Repair Parts
