Whirlpool Refrigerator Dispenser and Thermostats Not Working
Reference Model: WRF990SLAM02
Problem: Dispenser not dispensing any ice or water and condensation has built up in the fridge. Condensation problem solved by installing the adaption kit W10612142 - Icebox adapter but caused the deli bin thermostat to malfunction. Dispenser control board and main control board have been replaced but the dispenser and deli drawer thermostat are still not working properly.
Diagnosis:
Check and make sure the control board is sending power to the water valves. On this model, there is a valve for the dispenser, a valve for the ice maker and an isolation valve that is powered through a pair of diodes that needs to open when either of the other two are energized. Additionally, check that the deli drawer board is receiving 14V DC directly from the board. Refer to the Whirlpool Job Aid linked below on this model.
Some Whirlpool Refrigerator parts for our reference model#
Item Number EDR2RXD1
EveryDrop Ice & Water Refrigerator Filter 2
Item Number WPW10764668
In-Door Ice system ice maker assembly

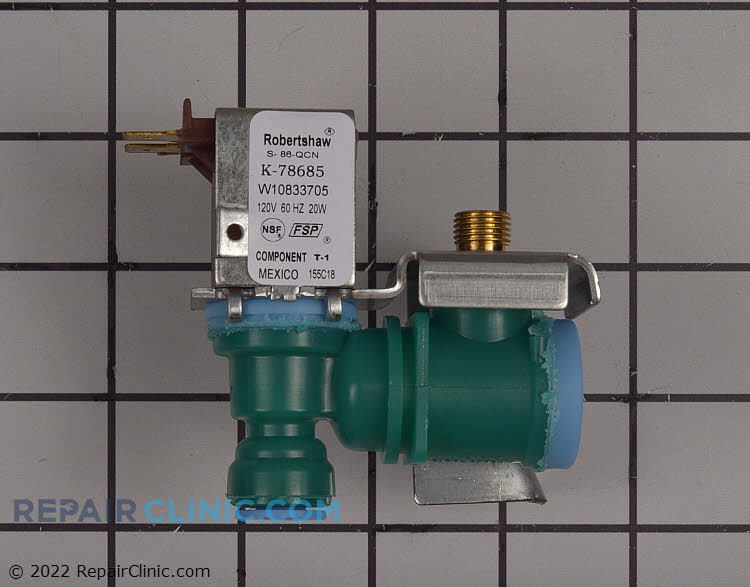

Item Number W10865826
Primary water inlet valve

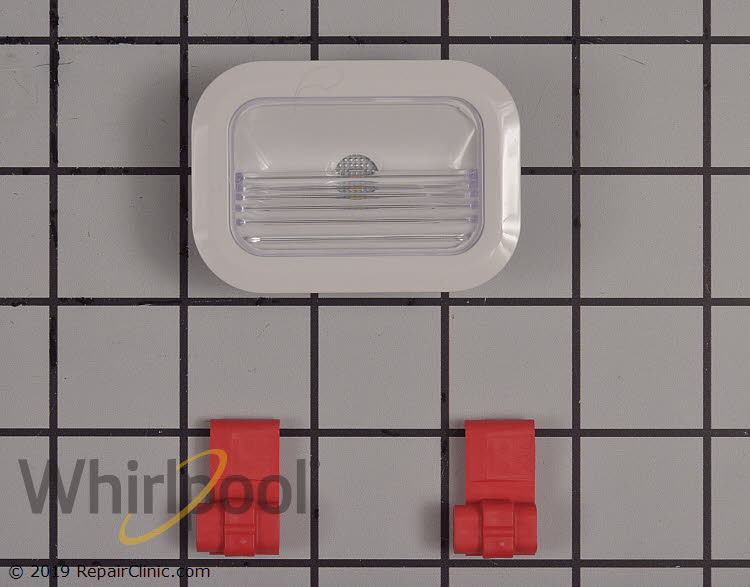

Item Number W10695459
LED light with splice connectors
